Duravit Durasystem Concealed Cistern
Product data
Type:
Høj
Operation:
Front
Item numbers
Item no. 10278681
Plumbing no. 617167110
Supplier item number. WD1011000050
Description

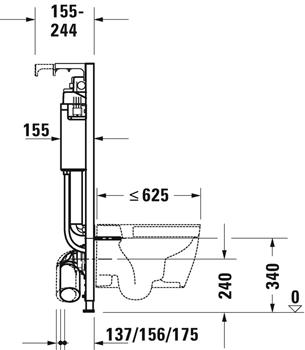

Duravit DuraSystem standard installation element dry installation for WC 500x170x1148 mm. For installation behind gypsum boards, self-supporting, suitable for cladding with gypsum boards, powder coated frame, for toilets with a depth <= 625 mm, height-adjustable legs 0-240 mm. SensoWash prepared, mechanical operation from the front. Easy access with pressing tools. Meter and centermark, tool-free mounting of the transparent inspection plate. Requirements for leading noise protection standards DIN 4109 and VDI 4100 can be achieved (in combination with noise reduction set # WD6015 000 000) Cistern, Concealed cistern CE tested according to EN 14055, maximum flush volume 9 l. Marking of filling height, 2-flush flush technology, adjustable flush volume, condensation insulated. Damper for regulating flush flow. Delivery scope, PE closet bend for wall-mounted toilet DN90/90, PE connection set for wall-mounted toilet DN 90. Fastening set for wall toilet M12, Mounting accessories for light wall mounting. Mounting accessories for separate mounting, PE reduction bend DN 90/110 for wall-mounted toilet, 2 cover caps, pre-assembled WC element for wall toilet.

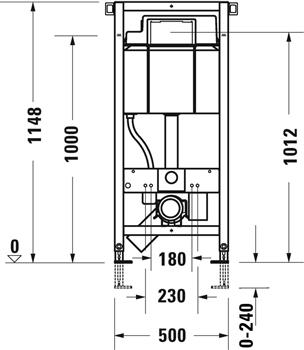

Height: 1148 mm Width: 500 mm Mounting: Indbygning Max flush volume: 9 l Material: metal Used for: Væghængte toiletter Country of origin: DE Customs code: 73249000 CE certification: CE construction product regulation
